Are you familiar with the 7 point trailer plug? If you frequently use trailers for hauling, you may have come across this type of plug. It is a crucial component that connects the electrical system of your towing vehicle to your trailer's. In this article, we'll provide a comprehensive guide to help you understand everything you need to know about the 7 point trailer plug.
Whether you're a seasoned trailer user or a novice, understanding how the 7 point trailer plug works can be challenging. We've broken down the information into manageable sections to help you understand it better. From its function to its different wiring configurations, we've got you covered. So, sit back, relax, and let's dive into this comprehensive guide.
What is a 7 Point Trailer Plug?
A 7 point trailer plug is a connector that allows your towing vehicle to communicate with your trailer's electrical system. It is an essential component that transmits signals such as brake lights, turn signals, and tail lights to your trailer. The 7 point trailer plug has seven pins that are responsible for transmitting these signals.
Each pin corresponds to a specific electrical function. For example, pin 1 is responsible for the ground connection, while pin 2 is responsible for the left turn signal. The 7 point trailer plug is designed to ensure that all electrical components of your trailer work correctly and in sync with your towing vehicle.
How Does a 7 Point Trailer Plug Work?
The 7 point trailer plug works by connecting the electrical system of your towing vehicle to your trailer's. When you connect the plug, each pin corresponds to a specific electrical function. For instance, when you turn on your towing vehicle's left turn signal, the signal is transmitted to pin 2 of the 7 point trailer plug. This signal is then transmitted to the left turn signal of your trailer, signaling to other drivers that you're turning left.
The 7 point trailer plug is designed to ensure that all electrical components of your trailer work correctly. The plug's seven pins are responsible for transmitting signals such as brake lights, tail lights, left and right turn signals, and the ground connection. When all these components work in sync, you have a safe and smooth towing experience.
Wiring Configurations of a 7 Point Trailer Plug
Standard Wiring Configuration

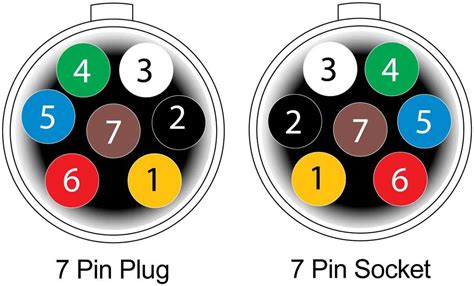

The standard wiring configuration of a 7 point trailer plug is as follows:
- Pin 1: Ground connection
- Pin 2: Left turn signal
- Pin 3: Tail lights
- Pin 4: Right turn signal
- Pin 5: Electric brakes
- Pin 6: Backup lights
- Pin 7: 12V power
This wiring configuration is the most commonly used and is suitable for most trailers.
Reverse Wiring Configuration
The reverse wiring configuration is the opposite of the standard wiring configuration. It is used when you need to reverse the polarity of the electrical system. This configuration is not commonly used and is only necessary in specific situations.
Benefits of Using a 7 Point Trailer Plug
Using a 7 point trailer plug has several benefits, including:
- Ensuring all electrical components of your trailer work correctly
- Providing a safe towing experience
- Easy to install and use
- Compatible with most trailers
- Standardized wiring configuration for easy troubleshooting
How to Install a 7 Point Trailer Plug
Installing a 7 point trailer plug is a straightforward process that you can do yourself. Here are the steps:
- Identify the wiring configuration of your trailer.
- Strip the wires from your trailer's electrical system.
- Connect each wire to the corresponding pin of the 7 point trailer plug.
- Test the plug to ensure all electrical components are working correctly.
Troubleshooting a 7 Point Trailer Plug
If you're experiencing issues with your 7 point trailer plug, here are some troubleshooting tips:
- Check the wiring connections to ensure they're secure.
- Test the electrical system of your towing vehicle to ensure it's functioning correctly.
- Check the wiring configuration to ensure it's correct.
- Check the fuses and relays to ensure they're not blown.
Wrapping Up
The 7 point trailer plug is an essential component for anyone who frequently uses trailers for hauling. It ensures that all electrical components of your trailer work correctly and provides a safe towing experience. By understanding its function, wiring configurations, benefits, installation, and troubleshooting tips, you can have a seamless towing experience. We hope this comprehensive guide has been helpful. Happy towing!
